A drop-stitch pool looks simple from the outside. Inflatable walls, a flat floor, a pump. What keeps that floor from ballooning into a soft dome is a grid of threads locked between two sheets of fabric. This article explains how that core works, why 10 PSI matters, and what separates a pool that lasts from one that fails in its first season.
A drop-stitch pool uses a construction method called drop-stitch, also known as DWF (double wall fabric). Two layers of coated fabric sit parallel to each other. Thousands of fine polyester threads connect them, running straight across the gap at a fixed spacing. When you pump air into the space, the threads stop the two layers from spreading apart. The result is a flat, rigid surface that holds its shape under body weight and water load.
To go deeper on the basics, read our guide to drop-stitch technology.
This is different from a standard inflatable pool, which uses a single air chamber and feels soft underfoot. The thread grid is what gives a drop-stitch floor its stiffness. Without it, the floor would bulge upward the moment anyone stepped in.
A drop-stitch pool scales from a 6 foot kids paddling pool to a 20 foot commercial unit. The construction stays the same. Only the thread count and fabric thickness change with size. That consistency is why the method works across many product types, from backyard pools to floating docks built on the same core.

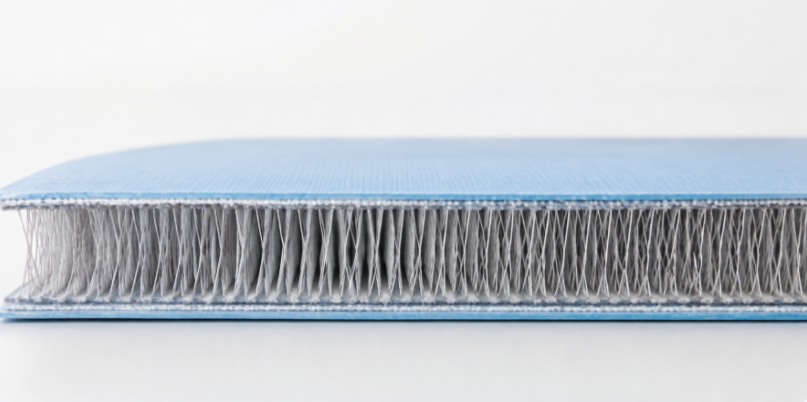

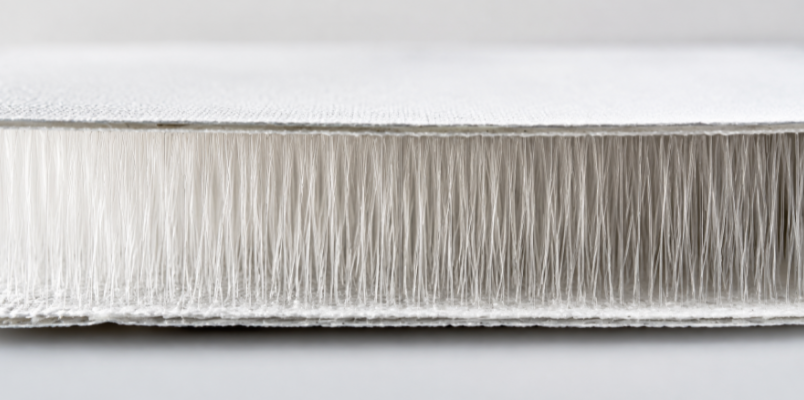

The core is the part that carries the load. In a typical 10 foot by 10 foot floor, the manufacturer stitches between 40,000 and 90,000 threads, depending on thread density and spacing. Each thread is a thin polyester yarn, often 100 to 150 denier. They are sewn through both fabric layers during the lamination process, not glued on afterward.
Thread spacing controls stiffness. A dense grid, with threads every 2 to 4 millimeters, gives a firmer floor that barely deflects when you stand on it. A sparse grid feels springy and can dip under load. For a commercial pool that sees daily use, density matters more than most buyers realize.
The threads do one job. They resist tensile force. When air pressure pushes the top and bottom fabric layers outward, the threads pull back with equal force. At 10 PSI, a square foot of floor carries about 1,440 pounds of outward push. The thread grid absorbs that load and keeps the surface flat.
The lamination step bonds the threads to the fabric under heat and pressure. Done right, every thread sits at a right angle to both layers, which is what lets it carry load evenly. If threads lean or loop, the floor develops weak lines that sag under weight. Buyers rarely see this step, but it decides whether the pool feels solid or spongy after a month of use.

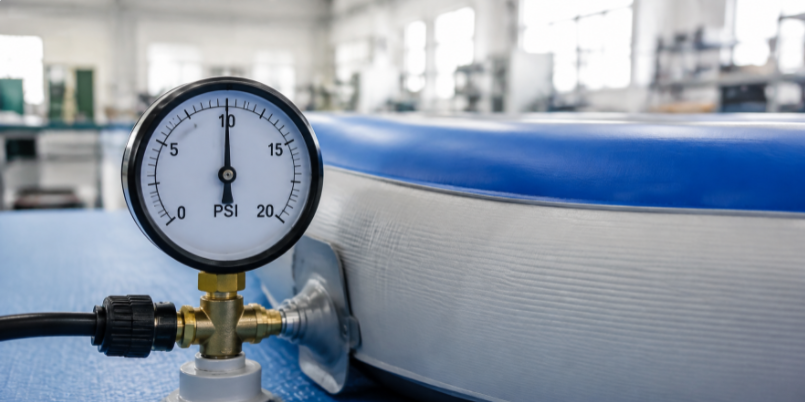

Most drop-stitch pools run at 8 to 12 PSI. Ten is the common working pressure for recreational and light commercial units. For buyers, the number is a quick quality signal. A pool rated for 10 PSI needs a tighter thread grid, stronger welds, and better fabric than one rated for 6.

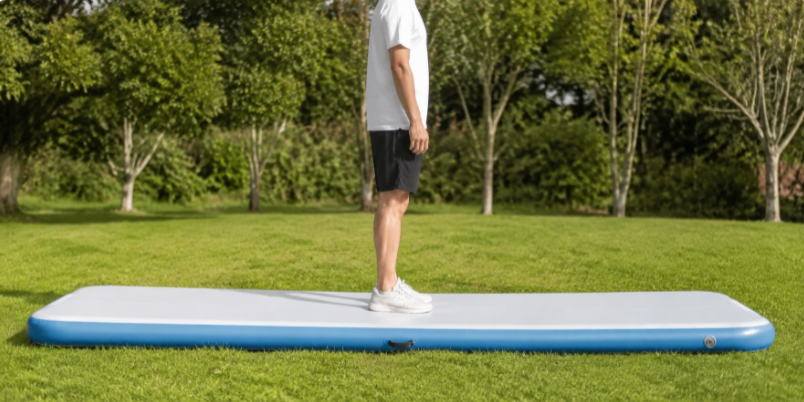

Higher pressure also means a firmer floor. At 10 PSI the surface stays flat with two adults standing on it. At lower pressure the floor bulges, which stresses the seams and annoys users. Importers who spec 10 PSI or higher tend to get fewer returns.
Pressure alone does not guarantee quality. A weak weld leaks at any pressure. But a verified 10 PSI rating tells you the factory tested the core, not just inflated it on the showroom floor.
Independent labs test drop-stitch cores by holding pressure for 24 to 72 hours and measuring deflection. A floor that drops more than a few millimeters fails the spec. Ask suppliers for this test record. A pool that passes at 10 PSI and holds flat over 48 hours will survive a season of daily use far better than one rated at 8 PSI with no test data.
Buyers sometimes ask for the highest PSI possible, assuming more is always better. Past 12 PSI the gains flatten while weld and fabric stress climbs. Most pools never need more than 10 to 12. The smarter move is to pair a 10 PSI rating with verified weld width and a thickness report, rather than chasing a bigger number on paper.

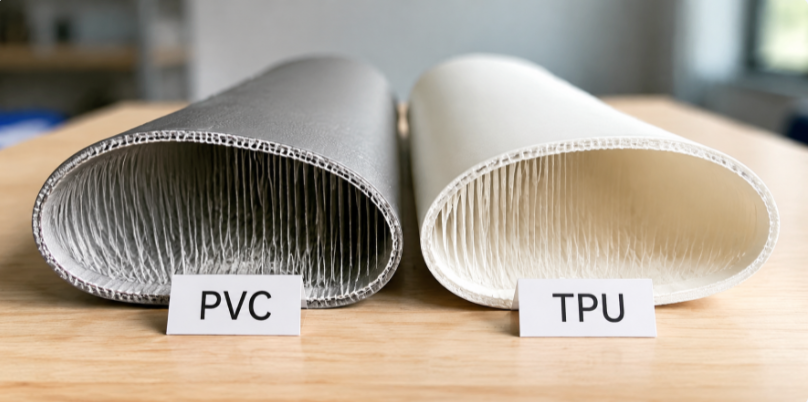

The two fabric layers are coated with either PVC or TPU. PVC is cheaper and dominates the market. It welds cleanly with radio frequency (RF) machines and resists abrasion well. Most budget and mid range pools use PVC from 0.55 to 0.9 millimeter thickness.
TPU costs more but performs better in cold and resists hydrolysis and UV breakdown over time. It also welds at lower temperatures, which reduces heat stress on the threads. Buyers targeting premium or cold climate markets often choose TPU.
Our drop-stitch vs PVC breakdown covers the tradeoffs in detail. For a full sourcing view on the TPU option, see our TPU drop-stitch fabric guide.
Fabric choice drives price and lifespan. A 0.7 millimeter PVC pool lasts several seasons in backyard use. A TPU pool often outlasts it by years in rough conditions.
Coating weight also varies. Light PVC around 450 grams per square meter suits calm backyard use. Heavy PVC at 600 to 900 grams per square meter suits rental and commercial fleets that drag pools across concrete. Match the coating weight to how rough the end use is, not just to the sticker price.
Air does the structural work. Once the core reaches working pressure, the trapped air pushes evenly on every square inch of the fabric. The thread grid converts that push into tension, holding the two layers at a fixed distance. The floor becomes a thin, air filled plate.
Remove the air and the floor collapses. That is the whole system. Stiffness comes from pressure times thread density, not from any rigid material inside.
This is why a slow leak changes everything. As pressure drops, the floor softens and the seams take more strain. A good pool holds pressure for days between pumps. Cheap units need daily top ups, which points to weak welds or porous fabric.
Temperature shifts the numbers. Warm air expands, so a pool pumped to 10 PSI on a cool morning can read higher by midday. Cold does the opposite and softens the floor. Factories build in a safety margin, but buyers shipping to hot climates should spec a slightly higher rating to keep the floor firm through the day.
The center stays flat, but the joint where the floor meets the wall carries the most shear. That seam gets the widest weld and often a second strip of fabric. Inspect it first when a pool starts to lose shape, because a flat middle with a bowing edge points to an edge weld problem, not the core.
Quality lives in the details buyers cannot see. Thread density must stay uniform across the whole sheet. Gaps or uneven spacing
create soft spots that wear fast. Factories control this with computer guided lamination, but cheaper lines still do it by hand.

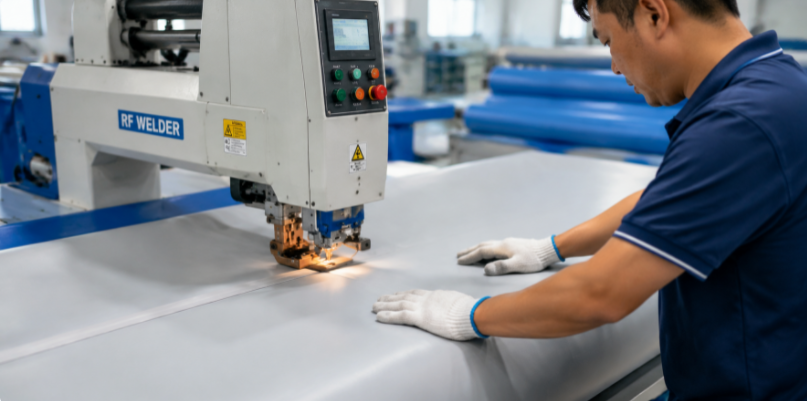

Weld width matters. RF welds need at least 25 to 40 millimeters of overlap to seal without leaking. Narrow welds fail under pressure. The valve and seam joints are the first places a pool leaks, so they get extra reinforcement.
Thickness tolerance is another check. A spec of 0.7 millimeter PVC should stay within plus or minus 0.05 millimeter. Out of tolerance fabric stretches unevenly and shortens the pool's life. Buyers should ask for a thickness report, not just a number on a datasheet.
Pressure retention testing is the cheapest quality gate and the one most often skipped. A proper check holds each finished unit at working pressure for several hours and logs any drop. Units that lose more than a set threshold get reworked or scrapped. Suppliers who refuse to share these logs usually are not running the test.
Most drop-stitch pools fail at the same spots. Seam leaks from narrow or cold welds. Thread pull out where the grid meets the edge tape. Valve housings crack under repeated pumping. Punctures happen, but construction flaws cause more returns than accidents.
Good factories prevent these with process control. They test every unit for pressure retention before packing. They keep weld temperature steady and check weld width with gauges. They reinforce the perimeter where threads terminate.
Before you shortlist a supplier, review our seven sourcing red flags. It covers the warning signs that separate real manufacturers from trading companies relabeling someone else's stock.

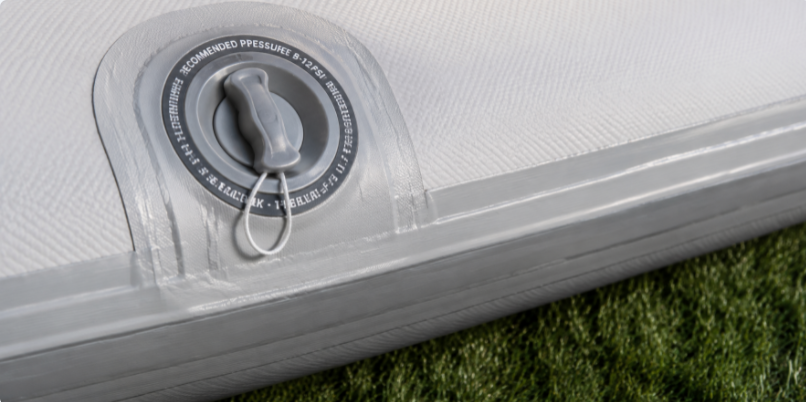

Field data from rental operators shows most mid season failures trace back to valve housings, not the core. Cheap housings crack where the hose connects. Specifying a reinforced, threaded housing cuts service calls by a wide margin. The core itself rarely fails if the welds hold, which is why weld control gets the most attention on the line.
A framed pool uses metal or plastic poles to hold its shape. A drop-stitch pool uses air and threads. Framed pools cost less upfront and need no pump to stay rigid, but they take longer to set up and store bulkier parts.
Drop-stitch pools pack into a small roll and inflate in minutes. They feel firmer underfoot and handle irregular ground better. The tradeoff is price and the need to maintain air pressure.
For distributors, drop-stitch units command higher retail margins and fewer complaints about soft floors. Framed pools win on pure cost for price sensitive markets.
Shipping tells the same story. A framed pool ships as bulky cartons that fill a container fast. A drop-stitch pool rolls into a fraction of the volume, so more units fit per shipment and freight cost per unit drops. For distributors moving containers across oceans, that density difference shows up directly in margin.
Most hold 8 to 12 PSI. Ten PSI is standard for recreational and light commercial use. Check the rating on the product, not the box.
A 10 by 10 foot floor typically has 40,000 to 90,000 polyester threads, depending on spacing. Denser grids feel firmer.
TPU resists cold, UV, and hydrolysis better and lasts longer in rough use. PVC costs less and works well for most backyard pools.
Low air pressure is the usual cause. Pump to the rated PSI and check for slow leaks at seams and valves.
PVC models last several seasons in home use. TPU models often last years longer in commercial or harsh conditions.
Yes. Small punctures patch with a PVC or TPU repair kit. Seam leaks need professional welding and are harder to fix at home.
Ask for a pressure retention test log showing the unit held 10 PSI for at least 24 hours with measured deflection. Reputable factories provide this. Those who cannot are a risk.
