Drop stitch material, also known as double-wall fabric (DWF), is a high-performance 3D composite built for heavy-duty inflatables. Thousands of vertical polyester threads connect the top and bottom PVC layers. When the product is inflated, those threads pull tight and hold the two layers at a fixed distance, so the surface stays flat and rigid instead of ballooning outward like ordinary inflatable fabric.

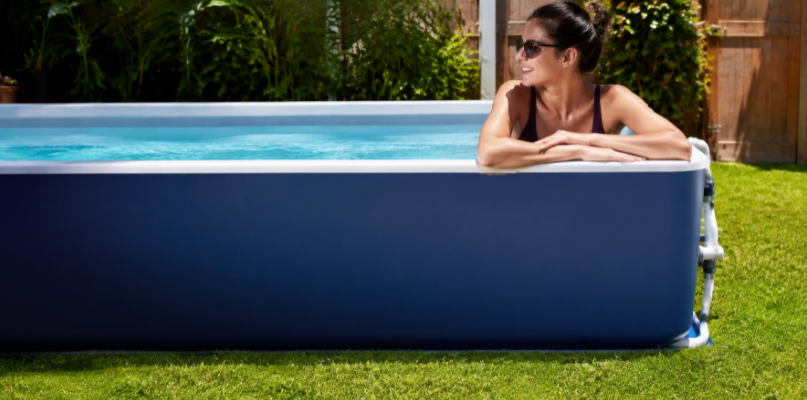

That one construction trick explains a lot. A drop stitch pool wall stands straight at 8 to 10 PSI. A drop stitch paddle board carries a 90 kg rider without flexing. A regular inflatable ring folds the moment you sit on it, because nothing inside limits how far its walls can drift apart. If you buy or sell inflatables in any volume, this material is worth understanding in detail. This guide covers how it works, where it beats standard PVC fabric, which products rely on it, and what to check before you place a wholesale order with a factory in China.
The structure has three parts, and each one does a specific job.
The outer layers start as woven polyester base cloth. The factory coats both sides of that cloth with PVC, which does two things: it makes the fabric airtight, and it adds resistance to UV light, abrasion, and water. The coating quality varies a lot between mills, and that variation matters for buyers. More on that later.

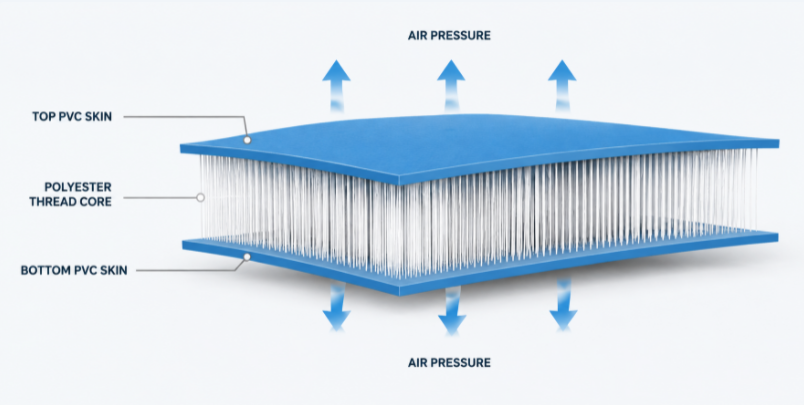

Between the two skins sits the core of the whole system: a dense grid of polyester yarns woven straight through from the top layer to the bottom one. A typical pool or board grade fabric carries several thousand threads per square meter, and premium grades run higher. Each thread is anchored to both skins.
Air pressure pushes the two skins apart. In a regular inflatable, the skins just keep separating until the fabric goes taut, and you end up with a rounded, pillow-like shape. In drop stitch fabric, the threads reach their full length within a few centimeters and stop the skins from moving any farther. Every thread is now in tension. The result is a flat panel with a constant thickness, and the panel gets harder as pressure rises. At 10 PSI, a 10 cm thick drop stitch panel feels close to a wooden board under your hand.
The same physics explains the failure mode of cheap fabric. If the thread grid is sparse or unevenly spaced, some zones hold their shape while others bulge. You get soft spots, wavy walls, and customer complaints.

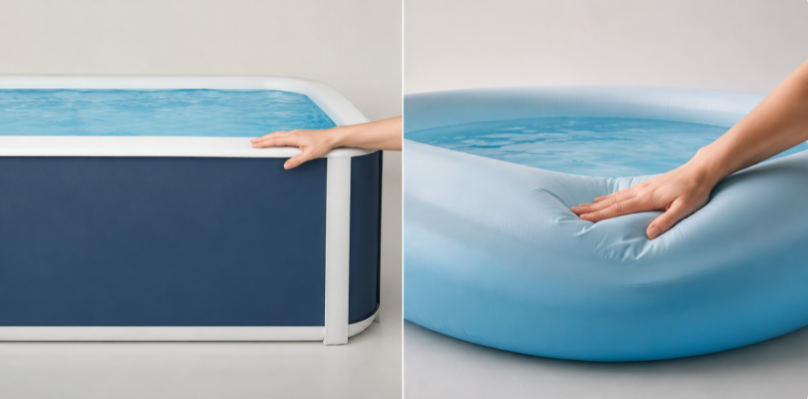

Buyers often ask why drop stitch products cost more. The comparison below answers most of it.
| Drop-Stitch Material | Regular Inflatable PVC Fabric | |
|---|---|---|
| Structure | Two PVC skins joined by a vertical thread core | Single or laminated PVC sheet, no internal core |
| Working pressure | 8 to 15 PSI | 1 to 2 PSI |
| Shape when inflated | Flat, rigid panels with constant thickness | Rounded, pillow-like tubes and chambers |
| Load capacity | Supports standing adults, equipment, water weight | Low; deforms under point loads |
| Typical products | Pools, air tracks, SUP boards, docks | Swim rings, beach balls, basic air mattresses |
| Material cost | Higher (thread weaving plus double coating) | Lower |
The short version: regular PVC fabric works for products where shape does not matter. The moment your product needs to stay flat, hold weight, or look like its hard-sided equivalent, you need drop stitch. We wrote a separate breakdown of drop stitch vs regular inflatable pools if pools are your category.

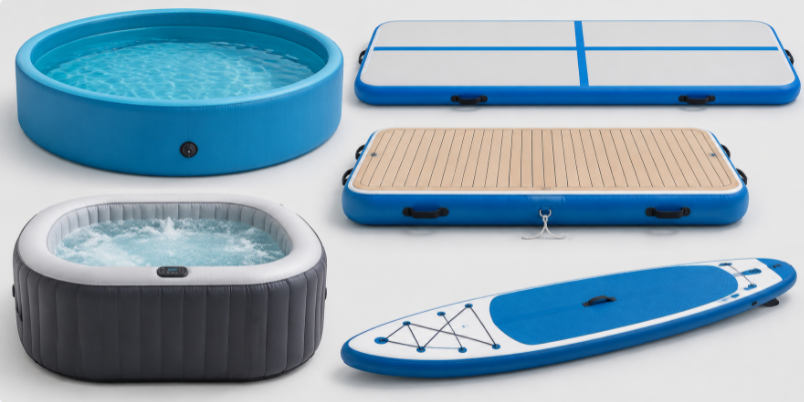

You will find this fabric anywhere an inflatable has to behave like a rigid product.
If you sell in any of these categories, the material spec is part of your product spec. That brings us to the part most blog posts skip.
Two products can both claim "drop stitch construction" and perform very differently. These are the checks that separate a reliable order from a container of returns.

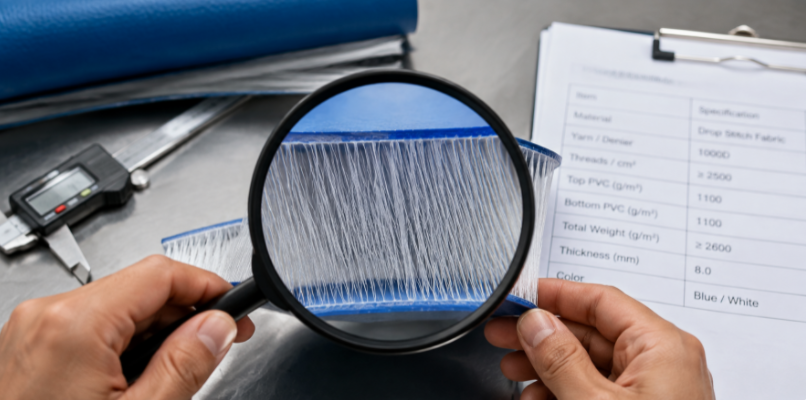

Density is measured in threads per square meter, and it directly sets how flat and hard the finished panel gets. Sparse grids produce soft spots and visible bulging between thread rows, especially at higher pressures. When you request a quote, ask for the thread density figure and the panel thickness tolerance. A supplier who cannot answer either question is buying whatever fabric is cheapest that week.
Ask for the coating weight in grams per square meter and the base fabric denier. A heavier, well-plasticized coating resists cracking and keeps its color after two or three summers outdoors. Thin, heavily filled coatings look identical in a showroom sample and start chalking or fading within a season. If your market has strong sun (Australia, the southern US, the Middle East), confirm the fabric includes UV stabilizers and ask for the aging test report.
Four practical steps:
None of this requires a materials lab. It requires asking specific questions and insisting on specific answers, which is exactly what generic sourcing advice never tells you to do.

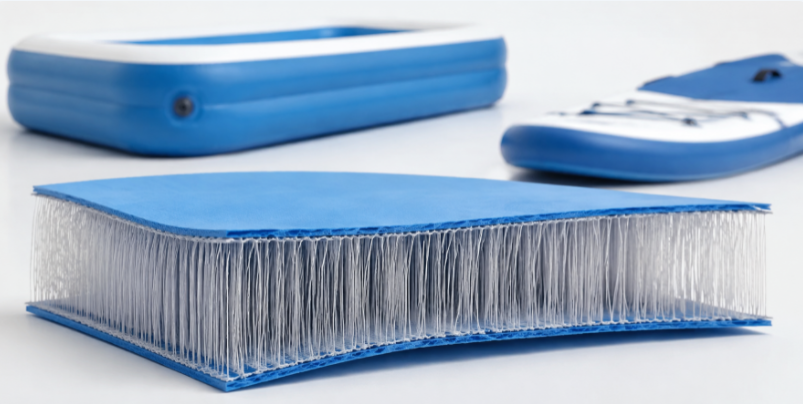

Two layers of PVC-coated polyester fabric, joined by thousands of vertical polyester threads. The threads hold the layers at a fixed distance under inflation, which is what creates the flat, rigid panel.
Yes. The PVC coating resists UV and abrasion, and the polyester core handles repeated inflation at 8 to 15 PSI. Quality fabric in commercial use often lasts five years or more. Cheap coatings are the weak point, not the threads, so coating quality deserves most of your attention when comparing suppliers.
They hold pressure for months without a pump top-up, so there is no mechanical reason to deflate them. Climate is the real limit. Where winters freeze, drain and store the pool. PVC stiffens in the cold and becomes easier to crack on impact, so winter storage adds seasons to the pool's life.
None. They are two names for the same material. Double wall fabric, usually shortened to DWF, is the term mills and freight documents use. Drop stitch is the term brands and retailers use. If a quote says DWF and your listing says drop stitch, you are talking about one product.
Drop stitch material earns its price the same way any engineered part does: it does a job that cheaper material cannot. The thread core turns air pressure into rigidity, and that rigidity is what makes deep inflatable pools, firm gym mats, and packable SUP boards possible. When you source it, the spec sheet matters more than the brochure. Ask about thread density, coating weight, and test reports, and verify them on a sample before you commit.
