Most leaks turn up in one of three places: the valve, a seam, or a hole somebody put in the surface. People usually assume the third one and start patching a mat that was never punctured.

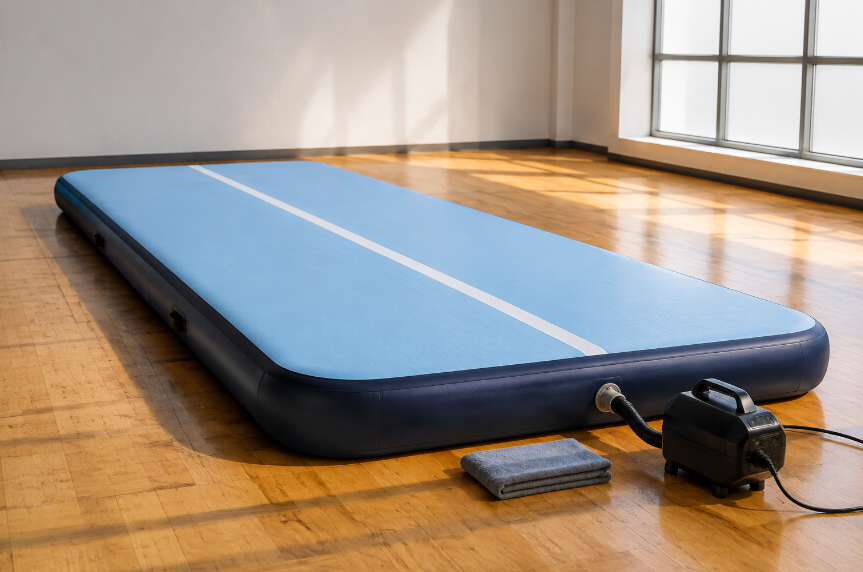

Check the thermometer before you do anything else. Air pressure falls when the air inside cools. A mat pumped up in a warm room will feel soft the next morning if it spent the night in a cold hallway. Inflate to the rated pressure, leave it alone for a few hours, then read it again with a gauge. If the number held, you don't have a leak.

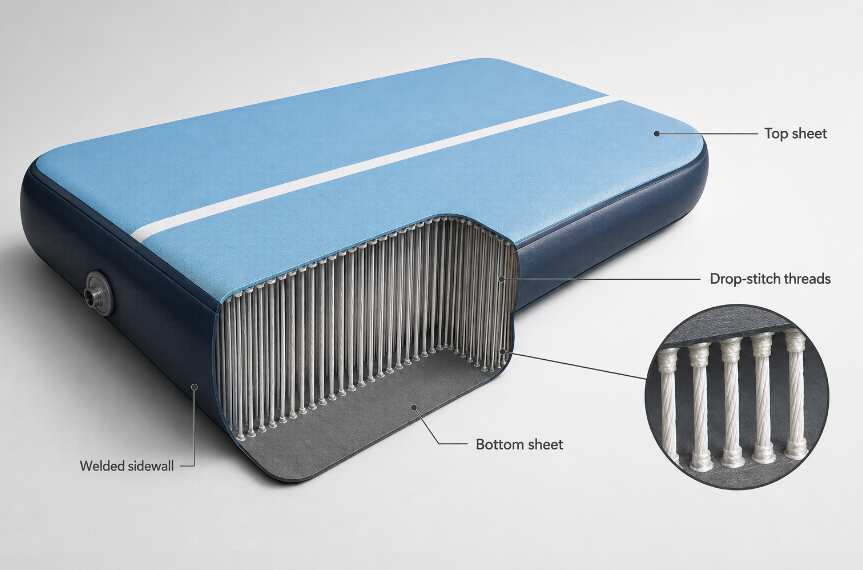

An air track stays flat because of what's inside it. Thousands of short threads connect the top sheet to the bottom sheet. Pump the mat up and those threads go taut, holding the two faces a fixed distance apart. Without them the whole thing would inflate into a round tube.
The usual causes, roughly in the order they show up:
The valve is a one-way door: air goes in, and it doesn't come back out when you pull the pump hose off. It's also the part that fails most often and the part almost nobody inspects.

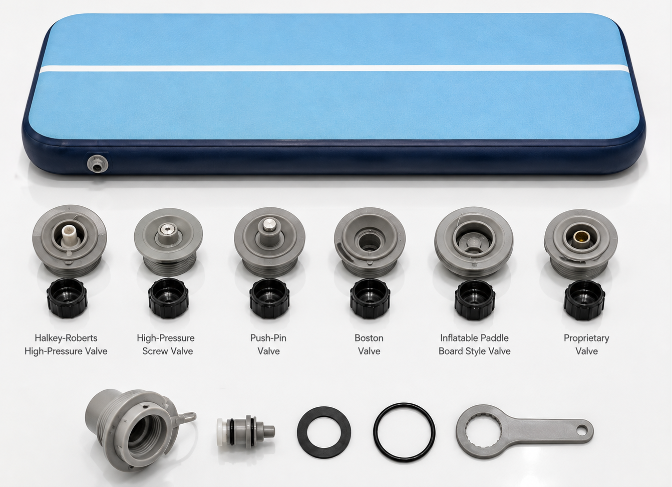

You'll see Halkey-Roberts style valves (the same family used on inflatable paddle boards), high-pressure screw valves, push-pin valves, Boston valves on lower-pressure products, and proprietary valves on some brands. Many training mats use a Halkey-Roberts type or a close copy, partly because it handles pressure well and partly because the core can be swapped out.
What to look for. It holds the rated pressure with the pump disconnected. It doesn't dump air the second the hose comes off. It has a cap. You can get the core out with a wrench. The pump adapter locks on instead of needing a hand to hold it.

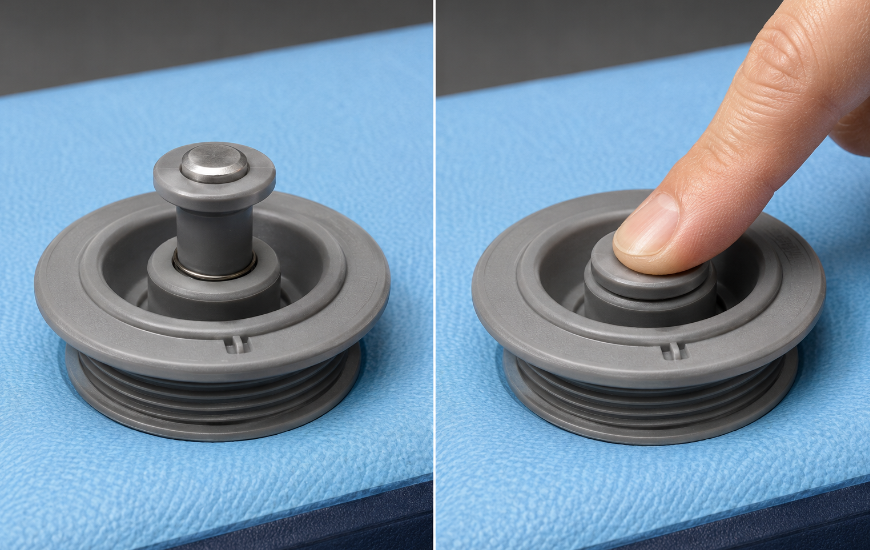

Mind the pin. On a push-pin valve, pin up means closed, pin pushed down means open for deflation. Leave it down and the mat empties itself the moment you disconnect the hose. It's the single most common false alarm in the gym.
Replaceable cores. If the center pin stops sealing, the spring weakens, the threads wear, or somebody forced the wrong pump nozzle in there, you swap the insert instead of the mat. Order by part number. Valves that look identical often differ in thread pitch, diameter, or gasket profile.
Gaskets and O-rings. The gasket seals the valve flange against the coated fabric. When your soapy water bubbles around the base of the valve rather than at the pin, suspect the gasket before the valve. Cracked, flattened, or off-center gaskets are a cheap fix. Skip the sealant unless the manufacturer tells you to use it; most of these valves seal by clamping, and a ring of goo makes the next repair worse.
The cap. Not the pressure seal, but it keeps chalk dust, sand, grass, and moisture out of the mechanism, and it stops the pin from getting knocked open in transit. Put it back every time. Start the threads by hand so you don't cross them.
Reinforced valve base. This spot takes more abuse than any other, because every inflation means pushing a nozzle on and pulling it off. Better mats add layers of PVC or TPU around the opening to spread that load. If the fabric around the valve is torn, stretched, or lifting away, tightening won't save it. That's a shop repair.
Pressure-relief valves. Some mats have one. It vents air if internal pressure climbs too high, which happens when a mat inflated in a cool room ends up in a hot gym, sits in direct sun, or rides in a closed vehicle. Useful margin. Not a substitute for a gauge.
Welded beats glued, most of the time. Heat welding, thermal welding, hot-air welding, high-frequency or radio-frequency welding, fusion bonding: the names differ, the idea is the same. Two compatible thermoplastic layers fuse into one, instead of being held together by an adhesive film that can dry out, soften in humidity, or let go in the heat.
Welding isn't magic, though. The bond depends on the fabric, the temperature, the pressure during welding, how wide the overlap is, whether the surfaces were clean, and whether anyone inspected the result. Ask what the seam looks like, not just whether it's welded.

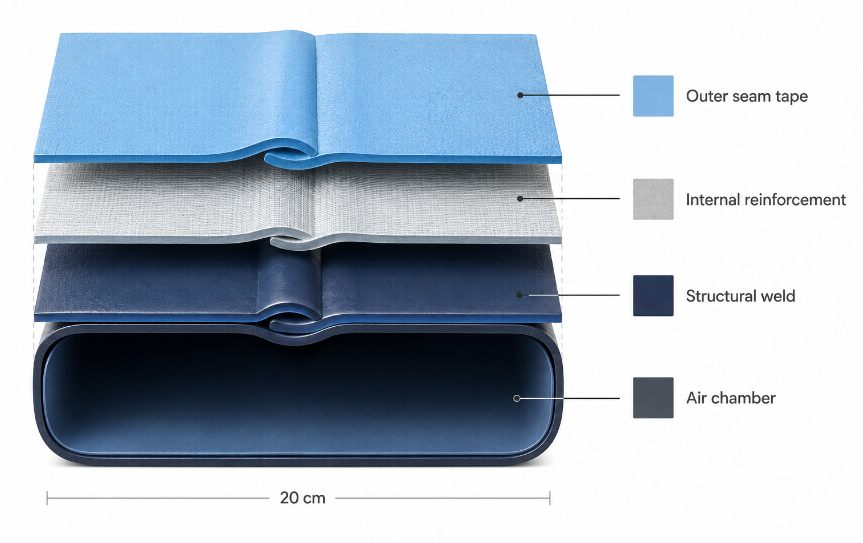

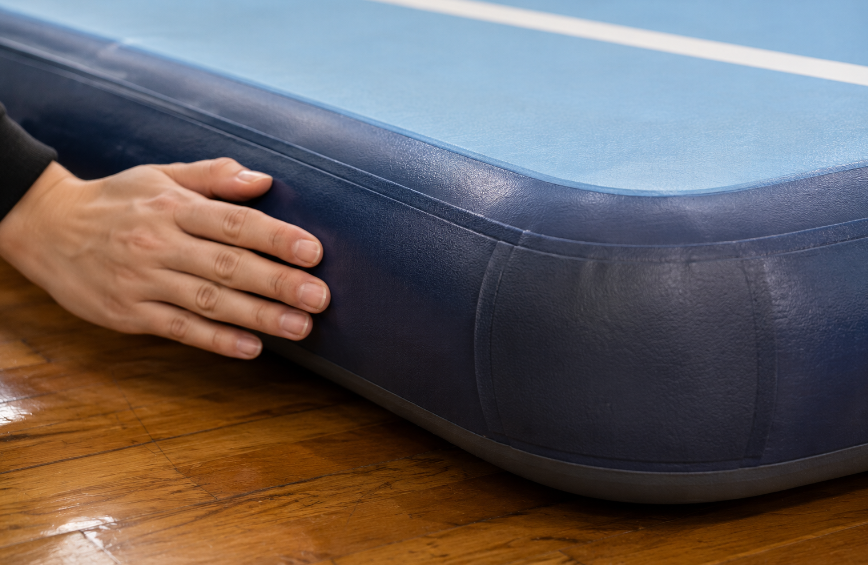

Layered joints. On a well-built mat the main joint is several things stacked: the structural seam, an internal reinforcement layer, and an outer tape or strip. More bonded area means the seam resists peeling through a few hundred cycles of inflate, fold, roll, repeat. Look for it along the sidewalls, bottom edges, end panels, corners, and around the valve.
Double-layer sidewalls. Some brands call them reinforced rails, double-wall construction, or perimeter reinforcement. Two thicknesses of material sit between the air and the floor. Sidewalls carry constant pressure and take most of the abrasion during setup, so the second layer pays for itself in punctures and scuffs that never happen.
Overlap width. A wider overlap spreads the load over more surface. When you inspect a seam, look for straight lines, even bonding, consistent width, no wrinkles, no gaps, and corners that are finished rather than folded over. A seam that's lifting, bubbling, or opening at the edge gets looked at before anyone trains on it.
Corners. Stress arrives from several directions at once here, and corners are what hits the floor when the mat is carried and rolled. Extra patch layers, rounded outer edges, rub strips, and a smooth transition between the top, sidewall, and bottom all help. Even with all of that, don't drag a mat by its corners.
Handles and D-rings. They should sit on broad backing patches with rounded corners, bonded over multiple layers, not stuck straight onto the outer skin. And don't lift a loaded mat by the handles. That's how attachments tear out.
Drop-stitch density. Even thread distribution, plus a strong bond between the threads and the face fabric, keeps the mat flat and takes load off the outer panels. If the internal threads break, you get a bulge, a bubble, or a soft spot that won't firm up. That's structural damage, not a puncture, and no external patch will fix it.

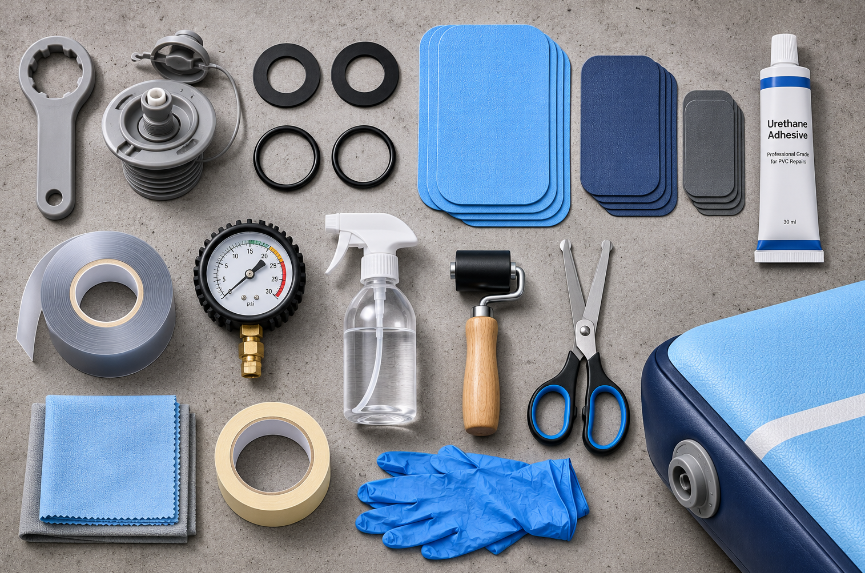

Valve wrench. A few dollars, and it saves you from gripping a plastic valve with pliers. Tightening, removal, installation, gasket swaps. Deflate the mat first, and stop when it's snug. Cracked valve bodies and squashed gaskets come from overtightening, not undertightening.
Replacement valve kit. Buy the one that matches your valve: complete assembly, core or insert, cap, gasket, O-ring, pump adapter, wrench. "Universal" kits tend to be universal in the sense that they fit nothing properly.
Patches, and the right ones. This is where most people waste money. A PVC patch on a TPU mat, or a generic vinyl repair product, will peel off under air track pressure. Find out what your mat is faced with and buy the matching patch and adhesive. Cut patches with rounded corners, extending about 2.5 to 5 cm past the damage on every side. Square corners are where a patch starts to lift.
Adhesive. PVC inflatable adhesive, TPU adhesive, urethane, two-part polyurethane, or whatever the manufacturer sells for your mat. Superglue, hot glue, rubber cement, and household silicone have no business here. They go brittle, they peel when the mat flexes, and they leave a residue the next person has to scrape off. Read the instructions on prep, mixing ratio, working time, ventilation, and cure.
Seam tape. Fine for a short, stable section where the seam is still aligned, there's no bulge, and the surrounding coating is sound. Not a fix for a long split or for a valve base that's letting go.

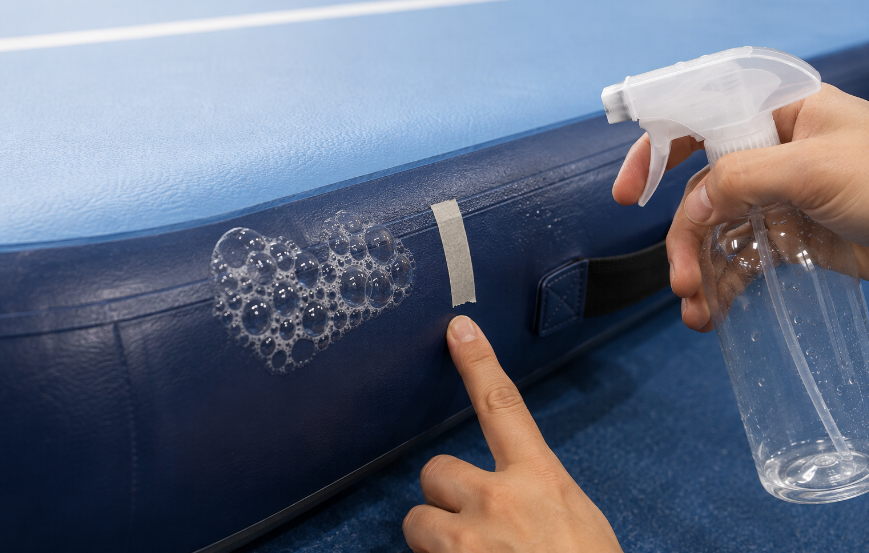

Leak-detection solution. Water with a little dish soap in a spray bottle. Bubbles that keep growing from one point mean a real leak. Rinse it off and dry the area completely before any glue goes near it.
Pressure gauge. You need one to tell a leak from a temperature drop, and to stay inside the rating. Never test a repair by pumping past the limit; that's how a small defect becomes a seam failure.

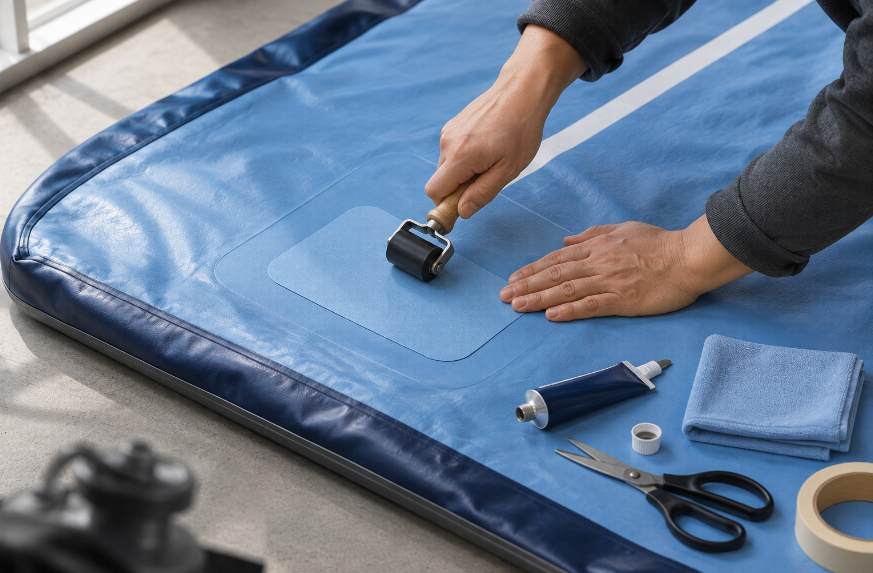

Patch roller. Roll from the center outward to push trapped air out and press the edges down. A wallpaper seam roller does the job if you don't have the real thing.
Prep supplies. Lint-free cloths, mild soap, clean water, a manufacturer-approved surface cleaner, masking tape, scissors, a marker you can wipe off, gloves, and a flat board to put under the repair area. The surface has to be clean, dry, and free of oil, chalk, and dust. Skip acetone, gasoline, and paint thinner unless the manufacturer confirms they won't attack the coating.
Deflate the mat fully. Wash the area with mild soap and water, rinse it, and let it dry all the way through, not just to the touch. Cut your patch with rounded corners and check that it clears the damage on every side. Mark where it sits.
Mix or prepare the adhesive the way the instructions say, and apply it to the patch, the mat, or both, whichever the product calls for. Lay the patch down without wrinkles, press from the center outward, then roll it. Weight it if the instructions ask for that.
Then wait. Adhesive that feels dry is not cured. Depending on the product and the room, full cure runs from a few hours up to 24 to 72 hours. Inflate gradually after that, spray the patch edges with soapy water, and confirm there are no new bubbles before the mat goes back into use.

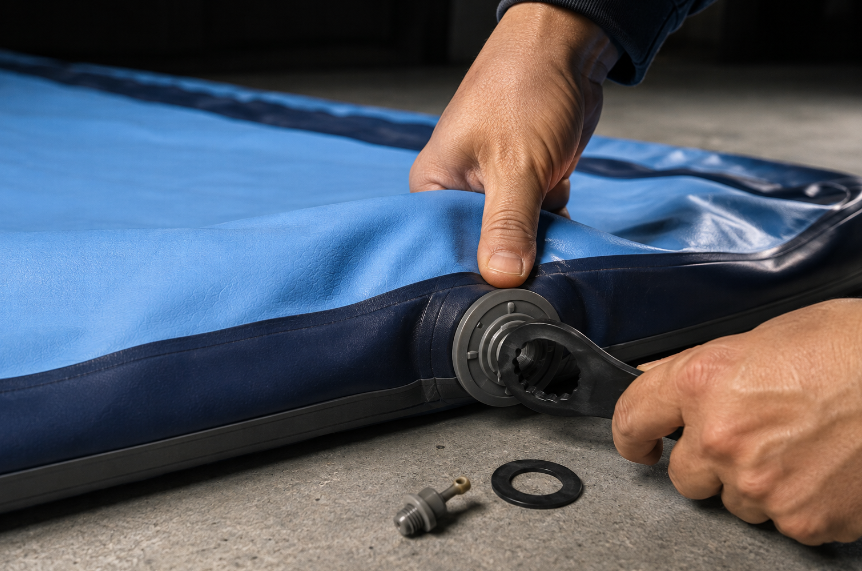

To tighten one: deflate the mat completely, support the valve base from inside, fit the right wrench, and tighten a little at a time. Keep the gasket flat and centered while you do it. Reinflate to the rated pressure and test around the base with soapy water. If it still leaks, stop turning; more force cracks plastic and deforms gaskets.
To replace the insert: deflate, unscrew the old insert with the wrench, inspect the gasket and the internal base, clean out any grit, fit the new insert and gasket, tighten evenly, then inflate gradually and test for bubbles.
If the fabric around the valve is torn or separating, a new insert won't be enough. The base and the surrounding material need reinforcing by someone with the right equipment.
A short, isolated seam leak is one thing. These are not:
A technician will have heat-welding equipment, matching thermoplastic stock, pressure rollers, and ways of reinforcing from the inside. Home kits don't cover any of that.
Superglue. Hot-melt glue. Duct tape as anything other than a two-minute emergency measure. Household silicone. Bicycle tire patches unless the manufacturer approves them. PVC adhesive on TPU. Screws and staples. Open flame, or a heat gun you can't control. Strong solvents. Pumping past the rated pressure.
A temporary patch may get a mat home from a competition. It does not make the mat safe for tumbling, jumping, or anything else with impact in it.
Pressure. Too much stresses the seams, stretches the valve area, and gets dangerous in hot weather. Too little lets the mat flex, crease, and drag its bottom surface across the floor, and it feels unstable underfoot. Both shorten the mat's life. Use the gauge.
The floor. Before you unroll, clear stones, glass, screws, staples, splinters, thorns, and metal fragments. Indoors, check for protruding nails, rough edges, and grit.
Heat and sun. Pressure rises with temperature. Don't leave an inflated mat in direct sun or in a closed vehicle, and recheck the pressure whenever it moves between very different temperatures.
Dragging. It abrades the bottom, the corners, and the seam tape. Carry it by the handles with enough people to hold the weight.
Sharp objects. Shoes, jewelry, keys, belt buckles. Keep pets off it.
Cleaning and drying. Mild soap and water, then dry it completely. Rolling up a damp mat traps moisture and leads to odor, mold, and material breakdown.

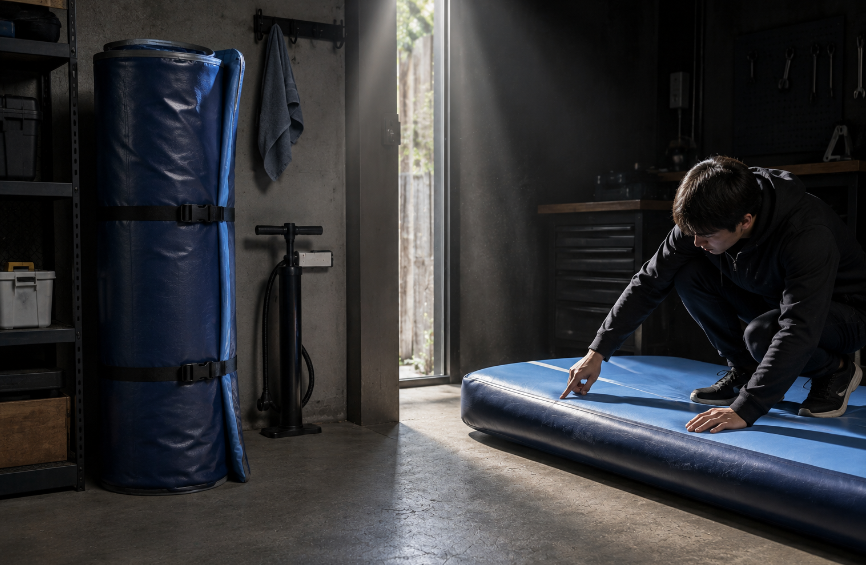

Storage. Dry, cool, shaded, away from UV, away from gasoline, oils, and chemicals, away from rodents, with nothing heavy stacked on top. Don't fold it in the same place every time. Follow the manufacturer's rolling method.
Before every session. Valve tightness, cap, seam edges, corners, handles, D-rings, old patches, surface abrasion, bulges, unexplained pressure loss. A minute of looking catches most of this while it's still cheap to fix.
High-pressure replacement valve. Spare gasket and O-ring. Valve wrench. Correct pump adapter. Pressure gauge. PVC or TPU patches to match your mat. Matching adhesive. Seam repair tape. Spray bottle with soap solution. Lint-free cloths. Scissors. Masking tape. Removable marker. Patch roller. Gloves. The manufacturer's repair instructions.
Check the adhesive's expiry date and how it's been stored once a year. Glue that's been opened and left in a hot garage quietly stops working.
What's the best valve for an air track? A replaceable high-pressure one-way valve, such as a Halkey-Roberts style unit or an approved equivalent, matched to your mat's pressure rating, thread size, and pump adapter.
Can I tighten the valve while the mat is inflated? Deflate first. You need to support the base from inside, and working on a pressurized chamber puts stress on fabric that doesn't need it.
Can I use a PVC patch on a TPU air track? Usually not. The two materials need different patches and different adhesives. Check what your mat is made of before you buy anything.
Will duct tape fix it? No. It'll get you through a car ride. It won't hold at air track pressure.
Why is my mat softer in the morning? Cooling air, material settling, a loose valve, or a small puncture, in that order of likelihood. Let it stabilize at one temperature, then run a soapy-water test.

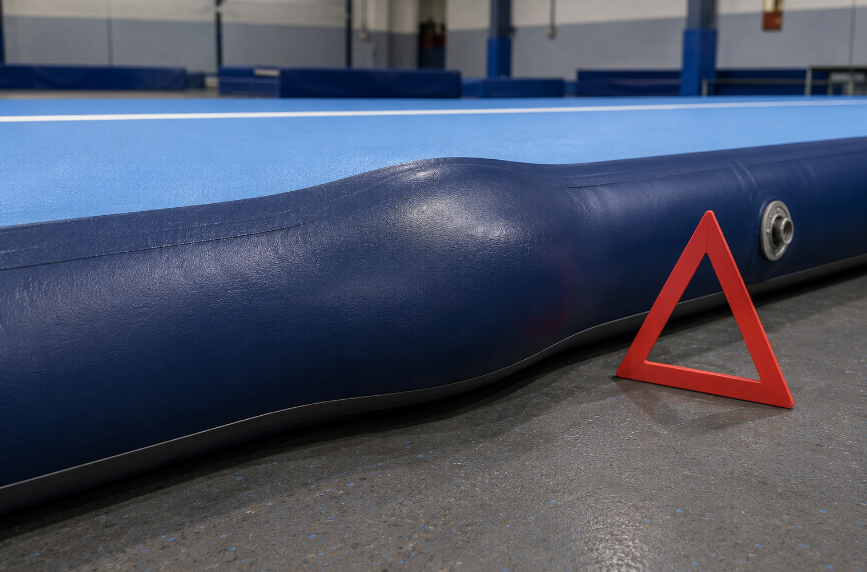

Can a bulge be patched? No. A bulge means broken internal threads or delamination. An external patch won't rebuild the inside. Stop using it and call the manufacturer.
How long does a patch need to cure? Whatever the adhesive says. Some products need a few hours, others need 24 to 72. Don't use the mat before then.
Mats that end up unusable almost never get there in one dramatic moment. They get there through a loose insert nobody tightened, or a small seam lift that kept being pumped up and ignored for a month. Buy the mat with the replaceable valve, keep a spare core, the right patches, and a gauge in the same bag as the pump, and most of this article becomes unnecessary.
